Polyester Resin
We stock Polyester Resin and Nozzles.
Scroll Down to view our full stock range.
| STOCK CODE | ITEM |
|---|---|
| PRESIN.410ml | Polyester Resin (410ML) |
| RESNOZ | Resin Nozzles |
What is a Metric Anchor Bolt?
Metric Anchor Bolts or expansion anchor bolts for concrete, brick, and blockwork, recommended for shear loads or where the bolt is subjected to side pressure. Our sizes range from M6 X 75 to M14 X 100.
For more information about what we stock Contact us on
Telephone – 01243 551484
Email -info@arunfasteners.co.uk
or follow the link below to our website.
https://www.arunfasteners.co.uk/…/shiel…/metric-anchor-bolts/
Follow our blog to stay up to date with what’s happening at Arun Fasteners.
Here at Arun Fasteners, we love hearing about our Customers projects. If you are in the process or have recently finished a project we would love to hear about it.
Please contact – info@arunfastener.co.uk, and someone will contact you about writing a feature.
What is a BSF Socket Button Screw?
BSF Socket Button Screws are Screws with smallish round heads in alloy steel, hex socket inserts for Allen keys, very common in most sizes, also available in stainless.
for more information please contact us on –
Telephone- 01243 551484
Email – Info@arunfasteners.co.uk
or click on to the link below to view our website and full stock range.
https://www.arunfasteners.co.uk/…/bsf-socket-screws/bsf-so…/
Stay up to date with the latest news from Arun Fastener Company.
Follow us on our social media feeds on Facebook, Twitter and Instagram @arunfasteners or view our monthly blog.
https://www.arunfasteners.co.uk/news/
Please see below measurements relating to our most common metric washers
| Metric Form A Washer DIN 125 | Metric Form C Washer DIN125C | |||||||
| Size | I/D mm | O/D mm | Thickness mm | Size | I/D mm | O/D mm | Thickness mm | |
| M3 | 3.2 | 7 | 0.5 | |||||
| M4 | 4.3 | 9 | 0.8 | M4 | 4.3 | 10 | 0.8 | |
| M5 | 5.3 | 10 | 1 | M5 | 5.3 | 12.5 | 1 | |
| M6 | 6.4 | 12 | 1.6 | M6 | 6.4 | 14 | 1.6 | |
| M8 | 8.4 | 16 | 1.6 | M8 | 8.4 | 21 | 1.6 | |
| M10 | 10.5 | 20 | 2 | M10 | 10.5 | 24 | 2 | |
| M12 | 13 | 24 | 2.5 | M12 | 13 | 28 | 2.5 | |
| M14 | 15 | 28 | 2.5 | M14 | 15 | 30 | 2.5 | |
| M16 | 17 | 30 | 3 | M16 | 17 | 34 | 3 | |
| M18 | 19 | 34 | 3 | M18 | 19 | 37 | 3 | |
| M20 | 21 | 37 | 3 | M20 | 21 | 39 | 3 | |
| M22 | 23 | 39 | 3 | M22 | 23 | 44 | 3 | |
| M24 | 25 | 44 | 4 | M24 | 25 | 50 | 4 | |
| M27 | 28 | 50 | 4 | M27 | 28 | 56 | 4 | |
| M30 | 31 | 56 | 4 | M30 | 31 | 60 | 4 | |
| M33 | 34 | 60 | 5 | M33 | 34 | 66 | 5 | |
| M36 | 37 | 66 | 5 | M36 | 37 | 72 | 5 | |
| M39 | 40 | 72 | 6 | M39 | 40 | 77 | 6 | |
| M42 | 43 | 78 | 7 | |||||
| M45 | 46 | 85 | 7 | |||||
| M48 | 50 | 92 | 8 | |||||
| M52 | 54 | 98 | 8 | |||||
| M56 | 58 | 105 | 9 | |||||

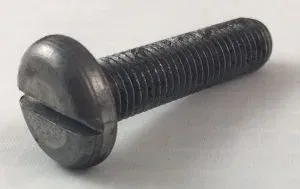

What are UNF Pan Slotted Machine Screws?
UNF Pan Slotted Machine Screws are mild steel screws with a flat head and a single slot recess, common in sizes up to M8, available in stainless and brass. Our sizes range from- 0.8 X 1/4 – 3/8 X 1
To order or for more information please contact us on 01243 551484 or Email info@arunfasteners.co.uk
or click below to view our full range,
https://www.arunfasteners.co.uk/…/unf-pan-slotted-machine-…/

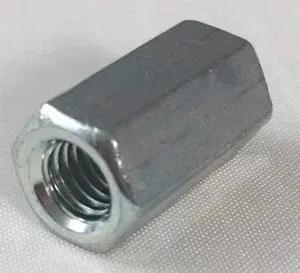

Studding Connectors
A long nut, length is normally 3 times the thread size used to join lengths of the threaded bar together, available in most sizes and threads.
https://www.arunfasteners.co.uk/stock-range/studding-studding-connectors/metric-studding-connectors/

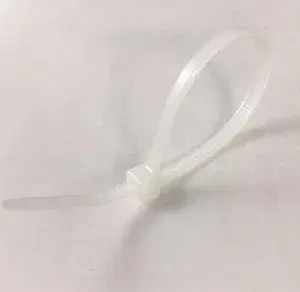

Cable Ties
A cable tie is also known as a zip tie. It is a fastener generally used to hold/ fastener items together.
We stock Cable Ties in sizes ranging from 140mm x 3.6mm – 370mm x 7.60mm.
Scroll down to view our full stock range.
| STOCK CODE | ITEM |
|---|---|
| CT.370×7.60 | 370mm x 7.60mm Black Cable Ties |
| CT.370×4.80 | 370mm x 4.8mm White Cable Ties |
| CT.140×3.60 | 140mm x 3.6mm White Cable Ties |

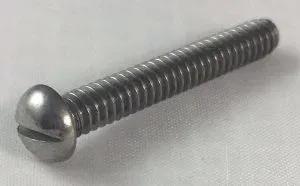

What are WHIT Round Slotted Machine Screws?
WHIT Round Slotted Machine Screws are mild steel screws with round single slot recess heads, normally only available in old British threads BSF, Whit or BA. Our sizes range from 1/8 X 1/2 – 3/8 X 2 1/2.
To order call 01243 551484 or Email info@arunfastener.co.uk
or click below to view our full stock range.
https://www.arunfasteners.co.uk/…/whit-round-slotted-machi…/
WHIT Slotted Nuts
Hex nut with slots cut into top side of hex that align with holes in bolt or shaft to accept the insertion of a cotter pin, available in most sizes in steel or stainless. Our sizes range from 1/2-2
https://www.arunfasteners.co.uk/stock-range/nuts/whit-nuts/whit-slotted-nuts/
What is a Metric Square nut?
Metric Square nut is a 4 sided nut available in various widths and thicknesses, available in most metric sizes and imperial sizes can be sourced, generally in steel.
For more information please contact us on 01243 551484 or Email info@arunfasteners.co.uk
https://www.arunfasteners.co.uk/…/metri…/metric-square-nuts/
